Intelligent Online Chlorine/Chlorine Dioxide Analyzer with High Precision Sensor for Finished Water

Product Menu

1/1

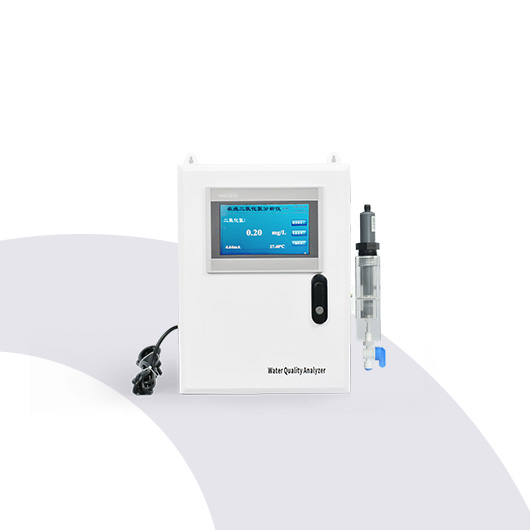

Intelligent Online Chlorine/Chlorine Dioxide Analyzer with High Precision Sensor for Finished Water

Equipped with Swiss sensors, the analyzer boasts high measurement accuracy, fast response time, and low maintenance costs. It features a 7-inch touch screen with a user-friendly human-machine interface, outputs 4-20mA (optional) standard signals and RS485 signals, and can connect to various regulators. For instance, it can be linked to two-position regulators, time-proportioning regulators, non-linear regulators, and classic PID regulators (per customer requirements) to form diverse chlorine dioxide control systems.

Application fields include tap water and rural drinking water, etc.

Model W781

Inquire by Email

Consult now

Detail

Working principle

The entire measurement system mainly consists of two parts: the instrument and the sensor. The instrument displays the disinfectant value (main measured value), the pH value of the aqueous solution (a pH electrode is required for optional configuration), and the working status. It outputs analog, digital, and switching signals.

The sensor adopts Swiss-technology sensors with MEMS micro-electronic measurement principles, featuring high accuracy and low maintenance.

Application fields

Tap water, rural drinking water, etc.

Functional Features

Imported sensors come as standard, ensuring high measurement accuracy.
Thanks to MEMS semiconductor technology, the measured values are not affected by flow rate or pressure.
It features a 7 - inch touch - screen display and adheres to the standard MODBUS RS485 communication protocol.
No calibration is required for the first use, and it requires low maintenance.

Technical Parameters

Technical parameters
Measurement	Measuring parameters	Chlorine/chlorine dioxide
	Range	0.01～2mg/L；0.01～5.00mg/L
	Measure the lower limit	0.01mg/L
	Resolution	0.01mg/L
	Definition （@25℃，PH7.2）	X 0.1 mg/L: absolute error ± 0.01 mg / L
		0.1 X 2 mg/L: ± 5% of the measured value or ± 0.03 mg/L (take the larger value)
		2 <X 5 mg/L: ± 5% of the measured value or ± 0.25 mg/L (take the larger value)
	Response time	<30s (90%，20℃)
	Drift	About-0.5% per month (after calibration at 25℃ and pH = 7.2)
	PH	5.0～9.0
	Maintenance cycle	180 Days
	Range of conductivity	≥50μS/cm
Electrical	Display	7-Inch touch screen
	Data storage	Automatic storage function and data protection in case of power off. It can store data for a total of 10 years.
	Power supply	105～235VAC±10%，50±1Hz
	Power	≤10W
	Analog output	4 ~ 20 mA (load resistance: 500 Ω)
	Digital output	The RS485 Interface, and the MODBUS RTU protocol
	Relay output	Two-way relays
Physical property	Material	Steel plate spray plastic
	Size	400×300×180mm (height, width and thickness)
	Weight	9kg
Environmental performance	Flow rate	In the flow chamber: 250 ~ 500 mL/min
	Protection levels	IP56
	water pressure	≤4bar
	Humidity	<90%, with no condensation
	Working temperature	Instrument: 0℃ ~55℃; water temperature: 0.1℃ ~45℃
