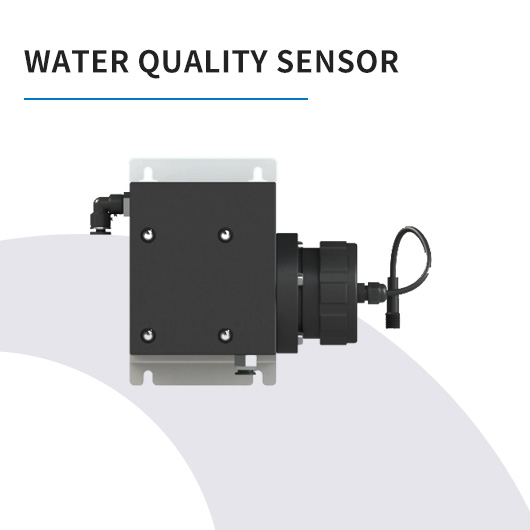

Pressure-Rated Turbidity Sensor for with Self-cleaning Optical Window for Drinking Water
Key features include a pressure-resistant flow path (reduces bubbles), sealed structure (facilitates sample recovery), compact size (easy integration), and self-cleaning optical window (extends maintenance intervals). It offers ultra-low detection (0.005 NTU), high accuracy (≤2% for low range, ≤10% for high range), and multiple ranges (0–1/20/100/2000 NTU).
Equipped with RS485 Modbus-RTU and optional 4–20mA output, IP68 protection, and -5~45℃ operating temperature, it’s ideal for water treatment plants, secondary water supply, direct drinking water, membrane-filtered water, swimming pools, and surface water. With 100–1000 mL/min flow (500 mL/min recommended), it delivers reliable, long-term turbidity monitoring.
Pressurized Turbidity Sensor is tailored for online drinking water monitoring, it delivers ultra-low detection limits, high accuracy, fast response, and long maintenance-free operation. Ideal for plant outlet water, secondary supply, distribution endpoints (tap water), direct drinking water, membrane-filtered water, swimming pools, and surface water.
Industry Applications
· Plant Outlet Water
· Secondary Water Supply
· Distribution Network Endpoint Water (Tap Water)
· Direct Drinking Water
· Membrane-Filtered Water
· Swimming Pool Water
· Surface Water
Product Features
· Pressure-rated flow channel: Reduces bubble formation
· Sealed flow path: Facilitates sample recovery
· Compact size: Enables easy system integration
· Self-cleaning optical window: Extends maintenance intervals
Technical Specifications
Technical Parameters | Details |
Operating Voltage | DC 24 V (supports 9–28 V wide input) |
Power | 5 W (peak) |
Measurement Method | 90-degree laser nephelometry |
Light Source | 660 nm laser |
Range | 0–1/20 (default)/100 NTU |
Resolution | 0.0001 NTU (<1 NTU), 0.001 NTU (≥1 NTU) |
Limit of Detection | 0.005 NTU |
Accuracy | ±2% or 0.02 NTU (whichever is greater); (based on Formazin primary standard at 25 °C) |
Operating Temperature | -5 to 45 °C |
Operating Mode | Pressurized flow-through |
Operating Pressure | ≤0.6 MPa |
Sample Flow | 100–1000 mL/min (recommended: 500 mL/min) |
Dimensions (W × H × D) | 192 × 147 × 98 mm (including fittings and backplate) |
Enclosure Material | ABS |
Outputs | RS485 Modbus protocol, 4-20mA output |
Note: Product improvements may change specifications; YuanGan reserves the right to modify parameters.
