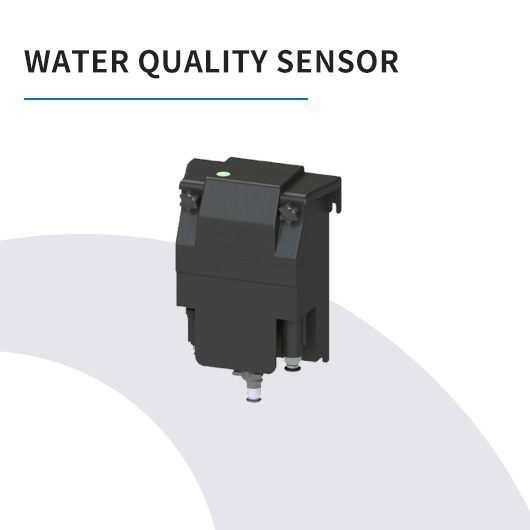

Online Turbidity Sensor Analyzer with Ultra-low Detection Limit for Drinking Water
Boasting an ultra-low detection limit (0.005 NTU) and high precision (≤2% accuracy), it features a circulatory water path, anti-contamination flow channel, and integrated defoaming design for stable measurements. With IP68 protection, RS485 Modbus-RTU communication, and optional 4-20mA output, it's adaptable to complex conditions.
Suitable for tap water, secondary water supply, direct drinking water, membrane-filtered water, swimming pools, and surface water, it operates at -5~45℃ with a 100-1000mL/min flow rate (500mL/min recommended), providing reliable digital data for water quality control.
This laser turbidity sensor is tailored for online drinking water monitoring. It delivers ultra-low detection limits, high accuracy, fast response, and long maintenance-free operation for plant outlet water, secondary supply, distribution endpoints (tap water), direct drinking water, membrane-filtered water, swimming pools, and surface water.
Industry Applications
· Water Treatment Plants
· Secondary Water Supply Systems
· Distribution Network Endpoint Water (Tap Water)
· Direct Drinking Water Facilities
· Membrane-Filtered Water Systems
· Swimming Pools
· Surface Water Bodies
· Other Scenarios Requiring Turbidity Monitoring
Product Features
· Higher Measurement Accuracy: Equipped with a laser light source sensor
· More Precise Measurements: Adopts high-precision electronic components
· More Stable Measurements: Features flow-through water path design
· Water Path Resists Fouling: Boasts unique flow channel design
· Handles Complex Operating Conditions: Integrated de-bubbling design
Technical Specifications
Specification | Details |
Measurement Method | 90-degree laser scattering |
Light Source | 660 nm laser |
Material | Composite |
Kit Dimensions (W × H × D) | 174 × 269 × 99 mm |
Range | 0–1/20/100 NTU |
Resolution | 0.0001 NTU (<1 NTU), 0.001 NTU (≥1 NTU) |
Limit of Detection | 0.005 NTU |
Accuracy | ±2% or ±0.02 NTU (whichever is greater) (based on Formazin primary standard at 25 °C) |
Weight | Approx. 1.2 kg |
Power Supply | DC 9–28 V |
Power | 5 W (peak) |
IP Rating | IP68 (sensor) |
Mounting | Wall-mounted |
Operating Temperature | -5 to 45 °C |
Storage Temperature | -20 to 60 °C |
Operating Humidity | 5% to 95% RH, non-condensing |
Inlet Connection | φ6 mm hose |
Outlet and Drain Connection | φ10 mm hose |
Sample Flow | 100–1000 mL/min (recommended 500 mL/min) |
Recommended Flow (membrane-filtered water) | 100–300 mL/min |
Recommended Flow (tap water) | 300–600 mL/min |
Digital Output | RS-485 (optional 4–20 mA) |
Note: Product improvements may change specifications; YuanGan reserves the right to modify parameters.
