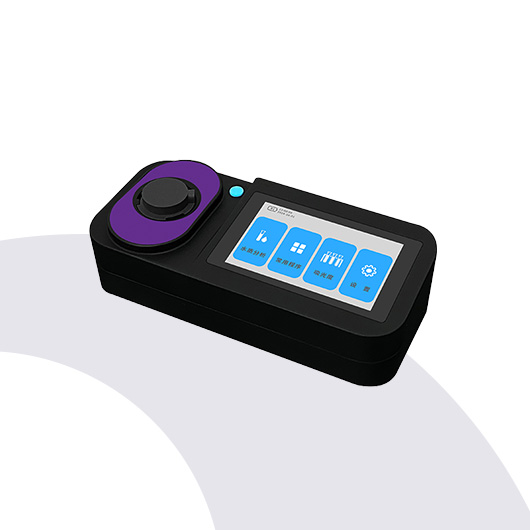

Portable Multi-Parameter Water Quality Analyzer with 50 Options
Featuring an intuitive touch-screen interface, long-life LED optical system, and flexible reagent compatibility, the analyzer simplifies routine testing while maintaining high analytical accuracy. Its portable design, combined with dual power supply options, makes it ideal for on-site inspections, emergency response, and daily laboratory use, helping users efficiently monitor water quality and ensure compliance with safety and environmental standards.
The Portable Water Quality Analyzer is a versatile and high-performance instrument designed for the analysis of surface water, groundwater, domestic sewage, and industrial wastewater. It is suitable for rapid on-site and field emergency testing, as well as routine laboratory water quality analysis, providing accurate and reliable results for environmental monitoring and industrial applications.
Product Features
No preheating required; measurement can be performed without a light-shielding cover
4.3-inch color touch screen with Chinese and English menu interface
Long-life LED light source ensures stable performance and high measurement accuracy
Fast and simple operation using pre-packaged reagents and built-in calibration curves
Supports user-defined reagents, allowing custom curve creation and calibration
Dual power supply options: built-in lithium battery and external power adapter
Technical Specifications
| Item | Specification |
|---|---|
| Display | 4.3-inch Color Touch Screen |
| Light Source | LED |
| Absorbance Range | 0–3 Abs |
| Optical Stability | ≤ ±0.003 Abs (20 minutes) |
| Sample Cell | Ø16 mm, Ø25 mm |
| Power Supply | 8000 mAh Lithium Battery |
| Data Interface | Type-C |
| Operating Environment | 5–40 °C, ≤85% RH (Non-condensing) |
| Protection Rating | IP65 |
| Dimensions (L × W × H) | 210 × 95 × 52 mm |
Available Parameters
Routine Parameters
COD (Low / High / Ultra-high), Ammonia Nitrogen (Low / High), Total Phosphorus (Low / High),
Total Nitrogen (Low / High), Nitrate Nitrogen, Permanganate Index (CODMn)
Disinfectants
Free Chlorine (Low / High), Total Chlorine (Low / High), Chlorine Dioxide,
Ozone (Low / High), Active Oxygen, Hydrogen Peroxide (Low), Available Chlorine
Full Parameter List
See detailed table below
Parameter List
| Parameter | Measuring Range | Routine | Disinfectant | Full |
|---|---|---|---|---|
| CODcr | 10–150 mg/L | ✔ | ✔ | |
| 20–1500 mg/L | ✔ | ✔ | ||
| 200–15000 mg/L | ✔ | ✔ | ||
| CODMn | 0.50–4.50 mg/L | ✔ | ✔ | |
| Ammonia Nitrogen | 0.02–2.50 mg/L NH₃-N | ✔ | ✔ | |
| 0.4–50 mg/L NH₃-N | ✔ | ✔ | ||
| Total Nitrogen | 0–25.0 mg/L N | ✔ | ✔ | |
| 2–150 mg/L N | ✔ | ✔ | ||
| Total Phosphorus | 0–3.50 mg/L PO₄³⁻ | ✔ | ✔ | |
| 1.0–100.0 mg/L PO₄³⁻ | ✔ | ✔ | ||
| Nitrate | 0.2–30 mg/L NO₃⁻-N | ✔ | ✔ | |
| Urea (GB) | 0.05–3.50 mg/L | ✔ | ||
| Free / Total Chlorine | 0.02–3.00 mg/L | ✔ | ✔ | |
| 0.1–10.0 mg/L | ✔ | ✔ | ||
| Chlorine Dioxide | 0.04–5.00 mg/L | ✔ | ✔ | |
| 0–200 mg/L | ✔ | |||
| Available Chlorine | 0–650 mg/L | ✔ | ✔ | |
| Ozone | 0.01–2.50 mg/L | ✔ | ✔ | |
| 0.1–6.0 mg/L | ✔ | ✔ | ||
| Active Oxygen | 0.01–0.70 mg/L | ✔ | ✔ | |
| Hydrogen Peroxide | 0.01–1.00 mg/L | ✔ | ✔ | |
| 0.2–40.0 mg/L | ✔ | |||
| Iodine | 0.07–7.00 mg/L | ✔ | ||
| Bromine | 0.05–4.50 mg/L | ✔ | ||
| Silicon | 0.01–1.60 mg/L | ✔ | ||
| Formaldehyde | 3–500 μg/L | ✔ | ||
| Cyanide | 0.002–0.200 mg/L | ✔ | ||
| Volatile Phenol | 0.05–5.00 mg/L | ✔ | ||
| Cyanuric Acid | 5–50 mg/L | ✔ | ||
| pH | 6.5–8.5 | ✔ | ||
| Manganese | 10–100 μg/L | ✔ | ||
| 20–4000 μg/L | ✔ | |||
| 0.1–20.0 mg/L | ✔ | |||
| Copper | 1–210 μg/L | ✔ | ||
| 0.04–5.00 mg/L | ✔ | |||
| Ferrous Iron | 0.02–3.00 mg/L | ✔ | ||
| Total Iron | 0.009–1.400 mg/L | ✔ | ||
| Hexavalent Chromium | 0.01–0.70 mg/L | ✔ | ||
| Total Chromium | 0.01–0.70 mg/L | ✔ | ||
| Nickel | 0.01–1.00 mg/L | ✔ | ||
| Cobalt | 0.01–2.00 mg/L | ✔ | ||
| Aluminum | 0.002–0.200 mg/L | ✔ | ||
| Zinc | 0.01–3.00 mg/L | ✔ | ||
| Cadmium | 5–1000 μg/L | ✔ | ||
| Nitrite | 0.002–0.300 mg/L NO₂-N | ✔ | ||
| Phosphate | 0.02–2.50 mg/L PO₄³⁻ | ✔ | ||
| Sulfate | 2–70 mg/L | ✔ | ||
| Chloride | 0.1–25.0 mg/L | ✔ | ||
| Fluoride | 0.01–0.60 mg/L | ✔ | ||
| Hardness (Total) | 10–500 mg/L | ✔ | ||
| Alkalinity | 20–400 mg/L | ✔ | ||
| Color | 0–500 | ✔ | ||
| Arsenic | 0.10–5.00 mg/L | ✔ |
