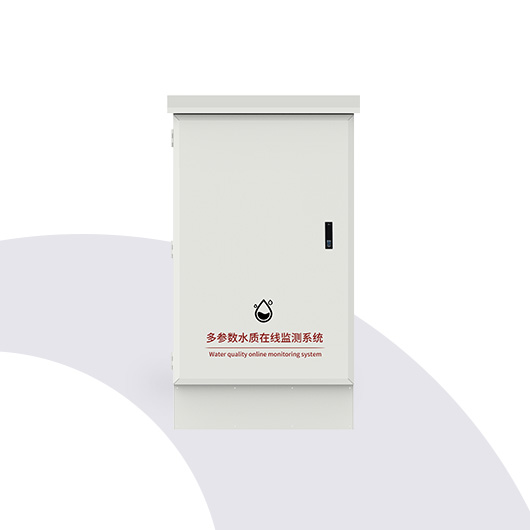

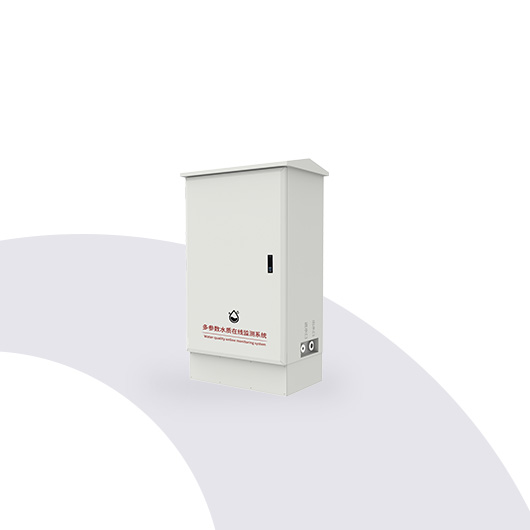

Outdoor Floor-Standing Multi-Parameter Water Quality Analyzer for WaterPlants
It features a built-in clarification tank, automatic sludge discharge, and fully automated cleaning, ensuring stable measurements with minimal maintenance. The unit is built for harsh outdoor conditions with IP65 protection, internal insulation, optional heating, and solar power support. With RS485/MODBUS communication, 1-million-record data storage, USB export, remote control capability, and optional 304 stainless steel housing, the W1485 is ideal for water plants, online monitoring stations, pipe networks, rural water supply, and outdoor public water safety monitoring.
Key Features
Flexible & Modular
Controller + analysis module architecture
Monitoring parameters can be freely configured based on field needs
Outdoor-Ready Industrial Construction
IP65 cabinet with rain shield, insulation layer, and optional heating
Optional 304 stainless steel outdoor enclosure
Automatic Cleaning & Clarification System
Built-in clarification tank
Automatic sludge discharge
Automatic cleaning for turbidity and color detection
No cleaning chemicals required
Advanced Data & Communication
RS485 (MODBUS), expandable 4–20 mA and GPRS
Up to 1,000,000 data records
Trend charts, historical data, and USB export
Optional remote operation and parameter configuration
Enhanced System Safety & Reliability
Surge protection
Power-off protection & auto-recovery
System diagnostics & real-time alarms
User/Admin permission management
Optional Auxiliary Functions
Automatic sampling pump control
Heating system
Solar power system
Applications
The W1485 is ideal for:
Water supply plants – disinfection monitoring, online quality tracking
Municipal pipe network monitoring – outdoor nodes, long-term unattended stations
Rural/remote drinking water facilities – stable, low-maintenance monitoring
Environmental monitoring stations – surface water or outdoor installations
Industrial and public water safety monitoring
Technical Specifications
| Category | Specifications |
|---|---|
| Monitoring Parameters | Free Chlorine, pH, ORP, Defoaming Turbidity, Temperature (Customizable) |
| System Architecture | Controller + modular analysis unit |
| Display | 10-inch HD color resistive touch screen |
| Languages | Chinese / English |
| Power Supply | 105–235 VAC, 50±1 Hz; 9–36 VDC optional; solar system optional |
| Operating Environment | 0–50°C; 0–85% RH, non-condensing |
| Storage Environment | 0–50°C; 0–90% RH, non-condensing |
| Sample Temperature | 1–45°C |
| Sample Flow Rate | 300–500 mL/min, with flow statistics |
| Sample Pressure | ≤0.4 MPa |
| Design Features | Modular configuration; outdoor cabinet with insulation |
| Cleaning System | Built-in clarification tank; automatic sludge discharge; auto cleaning for turbidity/color |
| Data Output | RS485 (MODBUS); optional 4–20 mA, GPRS |
| Data Management | Trend charts, historical data |
| System Monitoring | Operation logs, over-limit events, calibration records |
| User Management | User / Administrator |
| System Protection | Surge protection; power-off protection; auto power recovery; system diagnostics & alarms |
| Data Storage | Up to 1,000,000 records |
| Data Export | USB flash drive |
| Auxiliary Functions | Automatic sampling pump control; heating; solar system support |
| Remote Control | Optional remote configuration & management |
| Protection Level | IP65; insulated inner layer; rain shield |
| Installation Method | Outdoor cabinet with foundation base |
| Power Consumption | <40 W |
| Housing Material | 1.5 mm steel plate with powder coating, PMMA window; optional 304 stainless steel |
| Dimensions (H×W×D) | 1480 × 800 × 500 mm |
| Certifications | Sensor CE, ROHS |
| Reports | Metrological test report available |
