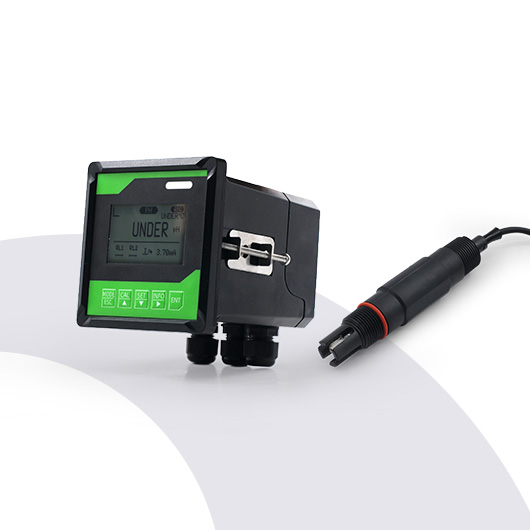

Online pH Analyzer DAW3001-pH with LCD Display for Clean Water
Supporting pH/ORP measurement and optional metallic antimony electrodes for hydrofluoric acid environments, the analyzer uses a universal power supply or optional DC version, with an isolated RS485 interface (MODBUS-RTU) for data transmission. With a wall-mounted design, it operates at 0～60℃ and <90% humidity. Paired with an IP68-protected pH sensor, it achieves 0-14 pH/0~50℃ measurement ±0.1 pH sensor accuracy, <30S response time, and flexible installation, suitable for diverse industrial monitoring needs.
Features
l 128*64 dot matrix LCD display, switchable between Chinese and English, IP65 protection level, stable operation around the clock
l Concise menu design, easy and convenient operation, graphical prompts, beautiful and clear interface
l Adjustable software digital filtering, enhanced hardware anti-interference capability, ensuring more stable measurement and adaptability to complex industrial environments
l Universal power supply (85～260VAC) worldwide, with optional customized DC version (18～36VDC)
l RS485 digital interface, MODBUS-RTU communication protocol
l Two measurement functions: pH (acidity and alkalinity) measurement or ORP (oxidation-reduction potential) measurement
l Equipped with metallic antimony electrode function, usable in hydrofluoric acid-containing environments.
Technical Parameters (Analyzer)
Parameter Category | Specifications | Details |
pH | Measurement Range | -2.00～16.00 pH |
Resolution | 0.01 pH | |
Measurement Accuracy | ±0.02 pH | |
ORP | Measurement Range | ±1200 mV (PH3001) / ±2000 mV (PH3002) |
Resolution | 1 mV | |
Measurement Accuracy | ±1 mV | |
Temperature | Measurement Range | -5.0～105.0℃ |
Resolution | 0.1℃ | |
Measurement Accuracy | ±0.2℃ (-5.0～80.0℃) for PH3001 ±0.5℃ (80.0～105.0℃) for PH3002 | |
Temperature Input | NTC10KΩ | |
Temperature Compensation | Automatic/Manual | |
Transmitted Current | Output Type | 4～20 mA (corresponding range configurable) |
Current Accuracy | ±1% F.S | |
Output Load | Less than 600 Ω | |
Switch Control | Relay | 2 SPST relays |
Load Capacity | 2.5A 230VAC | |
Data Transmission | Transmission Interface | RS485 with isolation voltage of 2500Vrms |
Communication Protocol | MODBUS-RTU (for data reading) | |
Other Parameters | Working Power Supply | 85～260VAC or 18～36VDC (selectable before ordering) |
Working Temperature | 0～60℃ | |
Working Humidity | Relative humidity < 90% | |
Protection Level | IP65 | |
Installation Method | Wall mounting | |
Overall Dimensions (HxWxD) | 108x108x132 mm | |
Cutout Dimensions | 92.5x92.5 mm (positive tolerance) |
Technical Parameters (pH Sensor)
Technical Parameters | Specifications |
Measurement Range | 0-14 pH, Temperature 0~50℃ |
Detection Principle | Glass Electrode Method |
Accuracy | ±0.1 pH; Temperature: ±0.5℃ |
Repeatability | ±0.1 pH |
Response Time | ＜30S |
Resolution | 0.01 pH |
Automatic Temperature Compensation | NTC10K |
Pressure Resistance | ≤2Bar |
Sensor Material | PPS Housing + Glass Electrode |
Controller Material | ABS |
Protection Class | Sensor IP68; Controller IP65 |
Output Signal | 1 Channel 4-20mA/Modbus RS485 |
Switch Control | 2 SPST Relays |
Relay Load | 2.5A 230 VAC |
Mounting Thread | Top & Bottom 3/4NPT Pipe Thread |
Operating Voltage | 85~260VAC or 24VDC |
Meter Dimension | 108×108×132mm |
Cutout Dimension | 92.5×92.5 mm |
Sensor Installation | Submersible/Bypass/Pipeline |
Meter Installation | Panel Mount |
