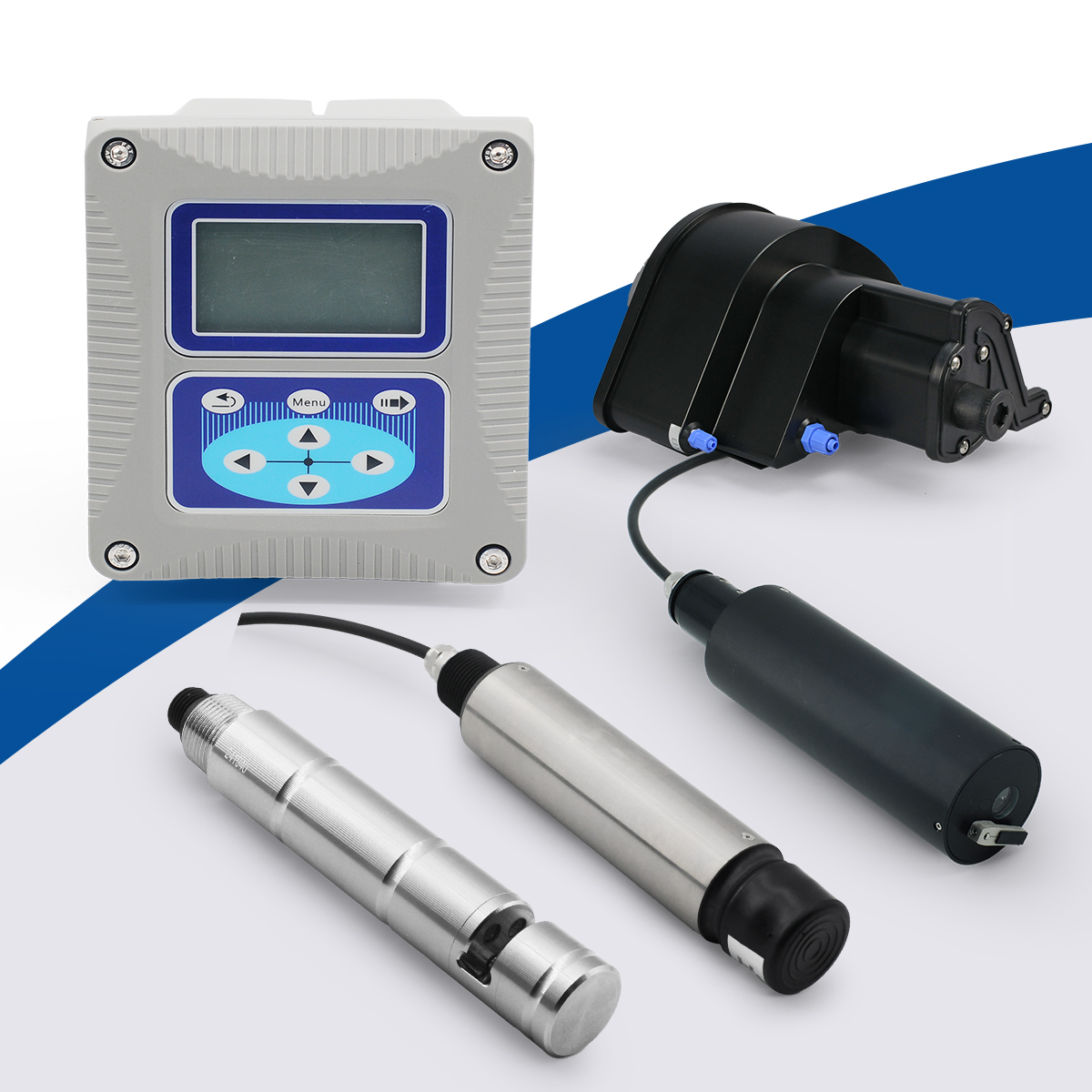

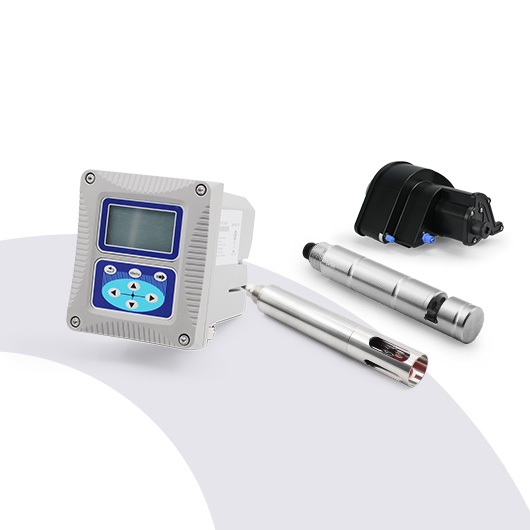

Online Water Quality Analyzer for Water Plants

The highly versatile universal transmitter connects freely with both digital and analog sensors, measuring parameters including pH, DO, ORP, conductance, turbidity, SS, chlorophyll, blue-green algae, residual chlorine, UVCOD, ionic ammonia nitrogen, nitrate, and transparency. Users can opt for single-channel (one sensor) or two-channel (two sensors) configurations to cut costs and save installation space. All digital sensor interfaces work directly, while analog sensors use type-specific modules—enabling plug-and-play, with quick electrode installation and replacement. Beyond displaying sensor data, it allows users to configure 4-20 mA analog output and calibrate via interface prompts, plus support relay control and digital communication. Widely used in sewage/water plants, monitoring stations, surface water systems, aquaculture, and industry, it meets diverse monitoring needs.
Model DAW501
Inquire by Email
Consult now
Detail

Product Overview

The DAW501 Universal Transmitter is a versatile and reliable solution for water and gas detection. Designed to seamlessly integrate with various sensors, it offers accurate data monitoring, flexible configuration, and stable performance, making it an ideal partner for OEM water and gas detection applications.

Key Features

  • Broad Sensor Compatibility: Freely connects with both digital and analog sensors, supporting multi-parameter measurement to meet diverse monitoring needs.

  • Flexible Channel Configuration: Optional single-channel (for 1 sensor) or dual-channel (for 2 sensors) setup, effectively reducing equipment costs and saving installation space.

  • Plug-and-Play Convenience: All digital sensor interfaces are ready for direct use; analog sensors only require type-specific modules. Enables fast and easy electrode installation and replacement.

  • Comprehensive Functionality: Displays real-time sensor data, supports 4-20mA analog output configuration and calibration, and offers relay control and MODBUS RS485 digital communication.

  • Durable & Reliable Design: Features an IP66/NEMA4X waterproof housing, suitable for both indoor and outdoor use, with strong resistance to environmental interference.

  • Rich Data Management: Stores up to 120 million data points (at 5-second intervals) and supports historical data query, facilitating traceability and analysis.

  • User-Friendly Operation: 128*64 dot-matrix LCD with LED backlight for clear display under direct sunlight; intuitive panel keys and multi-language (Chinese/English) support simplify operation.

Measurable Parameters

pH, Dissolved Oxygen (DO), Oxidation-Reduction Potential (ORP), Conductance, Turbidity, Suspended Solids (SS), Chlorophyll, Blue-Green Algae, Residual Chlorine, UVCOD, Ionic Ammonia Nitrogen, Nitrate, and Transparency.

Applications

Widely applied in various fields requiring water quality and environmental monitoring, including:

  • Sewage treatment plants and waterworks

  • Environmental monitoring stations

  • Surface water and groundwater monitoring

  • Aquaculture industry

  • Industrial process monitoring

Technical Specifications

Specification Category
Detailed Information
Display
128*64 dot-matrix LCD, LED strong backlight (operable under direct sunlight)
Power Supply
AC: 85V-500V AC (50/60Hz); DC: 9~36V DC
Analog Output
3-way 4-20mA; Programmable response parameters and value range; Max. load 500 ohms
Relay
3-way configurable relays; Programmable response parameters, values, and functions (timer/alarm)
Digital Communication
MODBUS RS485; Baud rate: 4800/9600/19200/38400; Data bits: 8; Stop bit: 1; Parity: None/Odd/Even
Housing Material
Lower casing: Aluminum with powder coating; Cover: PA66+GF25+FR
Protection Rating
IP66/NEMA4X
Operating Temperature
-15℃ to 60℃
Storage Temperature
-20℃ to 70℃
Dimensions (L*W*H)
145*125*162mm
Weight
1.35KG
Data Storage
Stores up to 120 million data points (5 seconds/record)
