Online Peracetic Acid PAA Analyzer with P9.3 sensor upto 60℃ for Electroplating plants
Product Menu
    • 1/2

Online Peracetic Acid PAA Analyzer with P9.3 sensor upto 60℃ for Electroplating plants

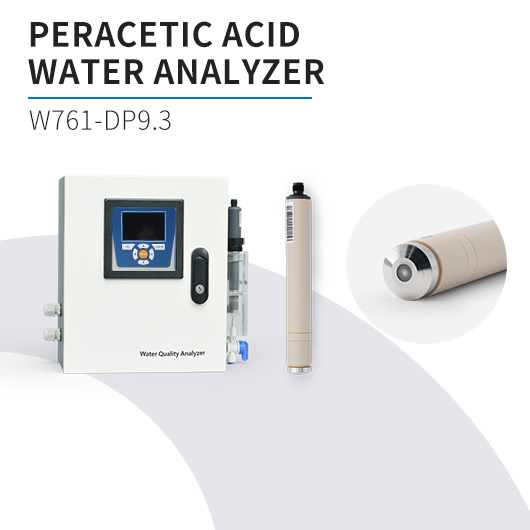

The analyzer consists of a LCD display instrument and a Germany made P9.3 PAA sensor adopting a membrane-covered amperometric 2-electrode system to accurately measure PAA concentration in aqueous solutions, delivering temperature-compensated analog signals and Modbus RTU digital signals, supporting calibration via downstream devices and direct connection to dedicated transmitters with one-key calibration; it features high-temperature tolerance (up to 60℃ water temperature), chemical/surfactant-resistant elastomer membrane, acid conductivity tolerance, <2%~3% accuracy (for 2000 mg/L range), T90 response time 45s~3.5min, flexible connectivity and IP65/IP68 protection, is EMC/RoHS compliant, requires minimal maintenance, and is ideal for water treatment in electroplating, pharmaceutical, food and beverage, dairy, and chemical industries (e.g., bottle washing machines, CIP plants).
Model W761-DP9.3
Inquire by Email
Consult now
Detail

Application Fields

Electroplating plants, pharmaceutical industry, food and beverage industry, dairy factories, chemical industry.

Product Features

  • Dual-electrode measurement system

  • Suitable for high water temperatures (up to 60℃)

  • Equipped with chemical and surfactant-resistant membrane structure

  • Simple calibration

  • Integrated temperature compensation function

  • Tolerates acidic conductivity

Technical Data Sheet

ParameterSpecifications
Measured ParameterPeracetic Acid (PAA)
Applicable ScopeAll types of water treatment (e.g., bottle washing machines, CIP equipment, rinsers); Tolerates control acids and surfactants
Measuring PrincipleMembrane-covered amperometric dual-electrode measurement system
Membrane TypeHydrophilic membrane
Measuring Cable Connection2-pole terminal connection (2×1mm²); 5-pole M12 aviation connector; 5-pole M12 aviation connector
Supply Voltage (UB)DC 12~30V (electrically isolated required); DC 9~30V (electrically isolated from the sensor)
Electromagnetic Compatibility (EMC)ᵃEmission: Class B; Immunity: Meets industrial requirements
Output Signal4~20 mA/0~±2V; Modbus RTU
Load/Current Consumption≤(UB-7.5V)÷0.02 A; Approx. 20-56 mA
Run-in TimeMeasuring range 200 mg/L: Approx. 3 hours for first use; Measuring range 2000 mg/L: Approx. 1 hour for first use; Measuring range 20000 mg/L: Approx. 30 minutes for first use
Flow Rate15~30 L/H (in flow cell)
Measuring Range0.5~200 mg/L (ppm); 5~2000 mg/L (ppm); 0.005~2%; 0.5~200 mg/L (ppm); 5~2000 mg/L (ppm); 0.005~2%
Resolution0.1 mg/L (for 200 mg/L range); 1 mg/L (for 2000 mg/L range); 0.001% (for 2% range); 0.1 mg/L (for 200 mg/L range); 1 mg/L (for 2000 mg/L range); 0.001% (for 2% range)
Accuracyᵇ (for 2000 mg/L range)<2% at 400 mg/L; <3% at 1600 mg/L
Response Time (T90)Approx. 3.5 minutes at 10 °C; Approx. 45 seconds at 45 °C
Operating TemperatureWater temperature: 0~60℃ᶜ; Ambient temperature: 0~55℃
Temperature CompensationAutomatic via integrated temperature sensor; Sudden temperature changes must be avoided
Zero Point CalibrationNot required
Slope CalibrationDetermined by chemical analysis method
pH Operating RangepH 1~8
Influence of Acidic Conductivity1% sulfuric acid, 1% nitric acid, or 1% phosphoric acid in water has no impact on measurement results
InterferencesO3: Significant increase in measured value; ClO2: Increase in measured value; H2O2: No influence
Pressure ResistanceᵈPabs max. 2 bar; Prel max. 1 bar
MaterialsElastomer membrane, PEEK, stainless steel 1.4571
DimensionsDiameter 25 mm, length 190 mm or 220 mm (housing with membrane cap, length depends on connection type); Diameter 25 mm, length 205 mm (housing with membrane cap)
WeightApprox. 125 g
