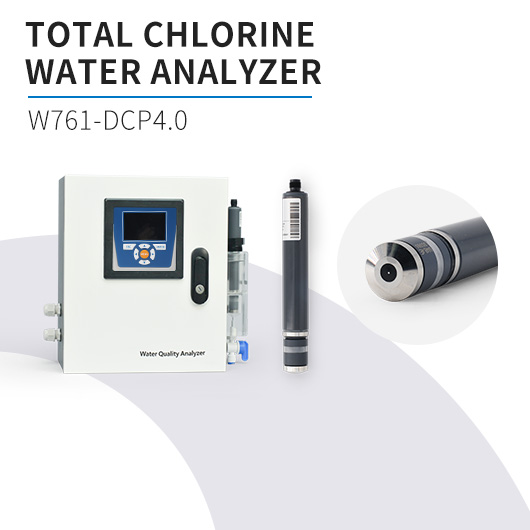

Intelligent Online Total Chlorine Analyzer with CP4.0 Sensor for Medical Wastewater
Featuring an LCD screen, the instrument can automatically identify measured parameters. It has current 4-20mA and RS485 output, allows free setting of the measurement range, provides high and low limit alarm prompts, The electrode supports multiple automatic calibration methods. Widely applied in measuring tap water; swimming pool water ; medical wastewater; sewage treatment ; seawater; high-salt seawater etc.
Working Principle:
The sensor is from the original German - imported RG brand and operates based on the principle of the constant - current method of the film - covered three (dual) electrodes. It has the characteristics of anti-interference and anti-pollution.
Tap water: 0 - 2mg/L
Sewage treatment: 0 - 20mg/L
Seawater: conductivity as high as 200mS/cm, etc.
Standard - equipped with imported sensors, ensuring accurate measurement and stable performance.
One-key calibration, historical data recording and export.
Standard MODBUS RTU communication protocol.
Dual high-impedance pre-amplifiers: High input impedance, noise-proof, and strong anti-interference ability.
Stable zero-point. Only one-point calibration is required on-site, and multiple calibration methods are also provided.
Human-machine interaction: Menu-based operation structure, allowing users to operate following on-screen prompts.
Multi - parameter display on the same screen: Simultaneously display the main measured value, pH value (optional), current output, and working status.
Two-way output signals: The software can select from three output modes: 4 - 20mA / 20 - 4mA / 0 - 20mA.
Free setting of the measurement range and alarm upper and lower limits; High and low limit over-range alarm prompts.
Three sets of relay control switches with an adjustable hysteresis control range.
Self - set password: Users can set or modify passwords to avoid misoperation.
Technical Parameters
Specification | Detailed information | |
Measurement | Measurement Parameters | Chlorine , pH (optional) |
Measuring Ranges | 0.005～0.500mg/L;0.005～2.000mg/L;0.05～5.00mg/L;0.05～10.00mg/L;0.05～20.00mg/L; | |
Lower Limit of Measurement | 0.005mg/L | |
Resolution | 0.001～0.01mg/L（depending on the measuring range） | |
Accuracy (@25℃, pH 7.2) | In the measurement range of 0 - 1ppm, when calibrated at 0.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one） | |
In the measurement range of 1 - 2ppm, when calibrated at 1.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one) | ||
In the measurement range of 0 - 10ppm, when calibrated at 5.0ppm, the error is ±2% of the measured value or ±0.3ppm.（take the larger one) | ||
In the measurement range of 10 - 20ppm, when calibrated at 15.0ppm, the error is ±5% of the measured value or ±0.5ppm.（take the larger one) | ||
Response time | T90≈3 minutes | |
Drift | Approximately - 1% per month (after calibration at 25℃ and pH = 7.2) | |
PH range | 4.0 - 12.0 (depending on the electrode) | |
Maintenance Cycle | ≥90days | |
Conductivity range | 10μS/cm～200mS/cm | |
Electrical | Display | LCD liquid - crystal screen |
Data Storage | It has an automatic storage function and data protection in case of power failure. In total, it can store 110,000 pieces of data. | |
Power supply | 105～235VAC±10%，50±1Hz/9-36VDC (DC is optional) | |
Power | ≤3W（including the sensor） | |
Analog Output | Two-way analog output, with optional signals: 4 - 20mA / 20 - 4mA / 0 - 20mA (load resistance < 500Ω) | |
Digital output | RS485 interface, MODBUS RTU protocol | |
Relay output | Three-way relay 3A 250VAC; 3A 28VDC or 120VAC | |
Physical prosperities | Material | Powder - coated steel plate |
Size | 300*250*165mm（H*W*D） | |
Weight | 6kg | |
Waterway interface | 2-inch or 3-inch hose （custom made） | |
Ambient performance | Flow rate | In flow chamber：250～500mL/min |
Protection level | IP43 | |
Water pressure | ≤6 bar（matching a pressure - reducing valve with the instrument） | |
Working humidity | <90%，no condensation | |
Working temperature | Instrument: 0℃ - 55℃; Water temperature: 0.1℃ - 45℃ | |
Storage temperature | Instrument：-20°C～60°C；sensor：0.1°C～55°C | |
